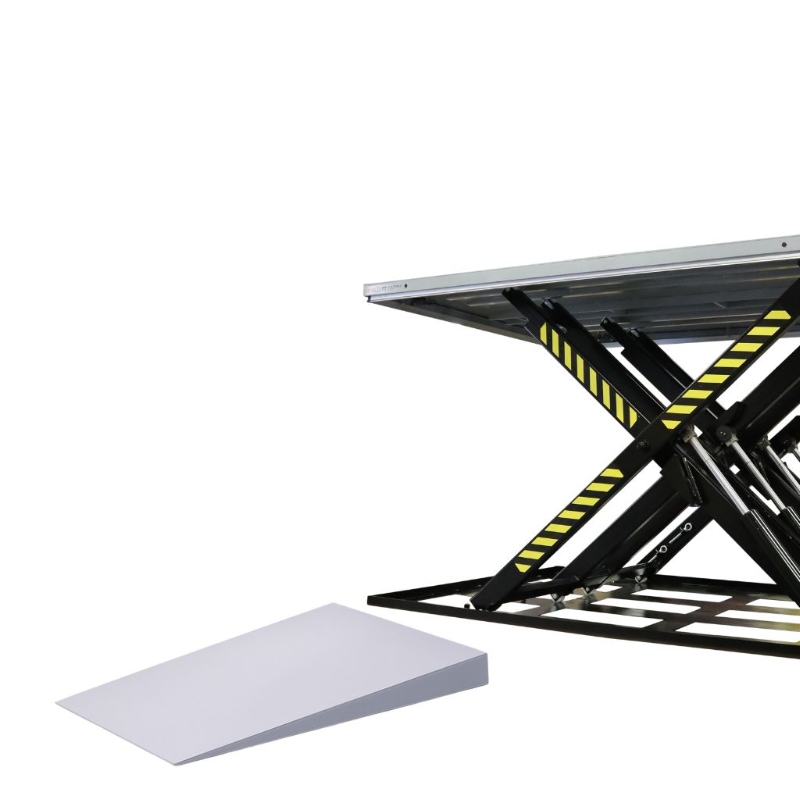

ICB2500 low profile lift table

£ 15,414.00 excl. VAT IN STOCK
£ 18,497.00 Incl. VAT

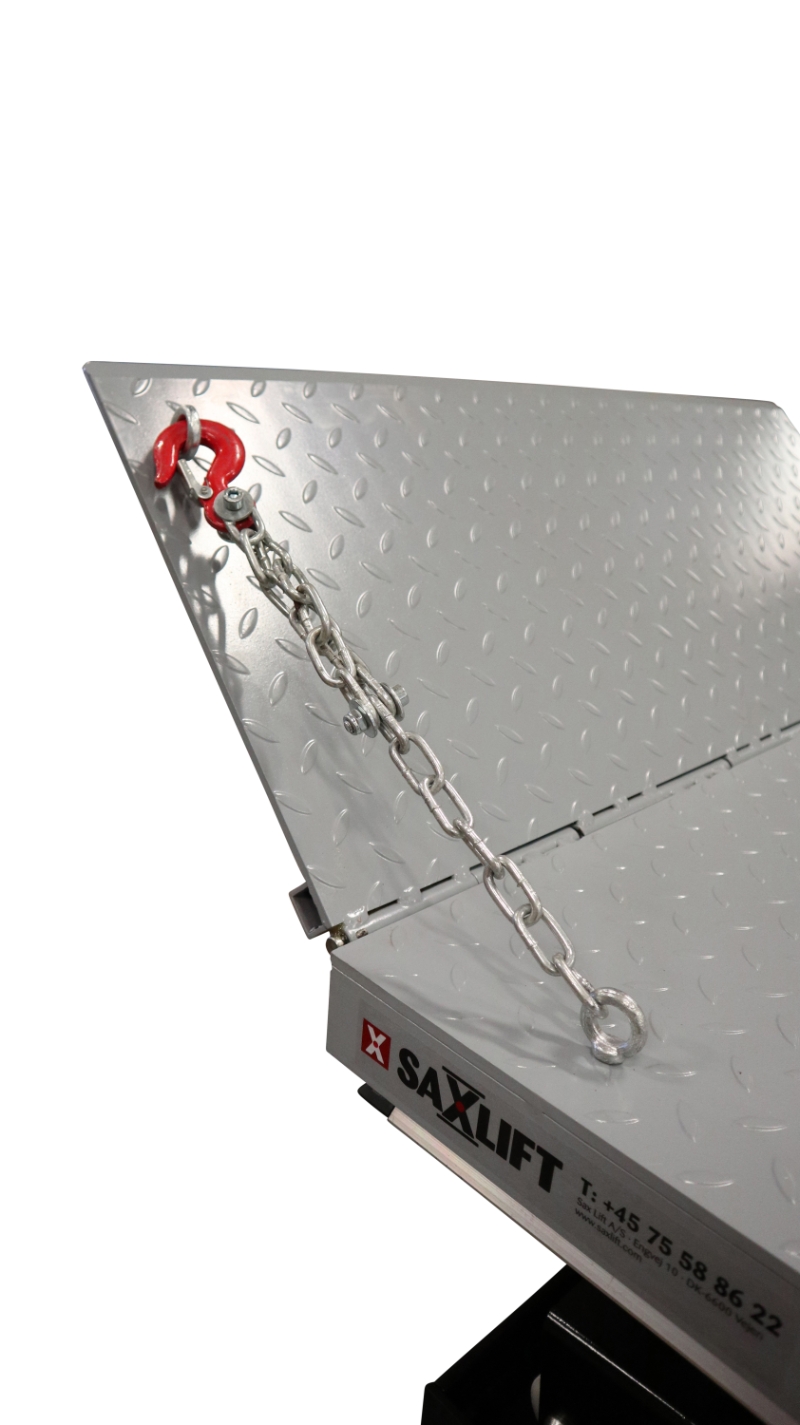

High quality lift table 2500 kg with 2610 mm x 2010 mm tear top platform, lifting to 1700 mm

IN PRODUCTION

Travel 1560 mm
Closed height 140 mm
Total height 1700 mm
Platform length 2610 mm
Platform width 2010 mm
Capacity 2500 kg
Lifting Time 36 sec

STANDARD SAFETY FEATURES INCLUDED

  • Hose burst valve to secure table from descending in case of breakage/leakage of hydraulic hoses
  • Control box and electrical components designed for safety and durability
  • Safety bar underneath platform will stop descent if obstructed
  • Over-pressure valve to safeguard hydraulics and motor from overload
  • Safe maintenance features
  • Includes hand controller with up, down, and, emergency stop functions

HIGHEST QUALITY STANDARDS ON ALL COMPONENTS

  • Unique control box with excellent performance, developed and produced locally next to our production facilities
  • Top performing hydraulic components – each one carefully selected for durability and safe performance
  • State of the art electrical components and wiring. Designed to last
  • Quality controlled – every single table leaving Sax Lift has passed a thorough quality protocol and check procedure

STANDARD SETUP

  • Power supply 3-phase, 400V N + PE, 50Hz, 13 Amp is standard
  • CEE Power plug
  • IP54 rated
  • Plug and Play

This product is in compliance with EN 1570-1
