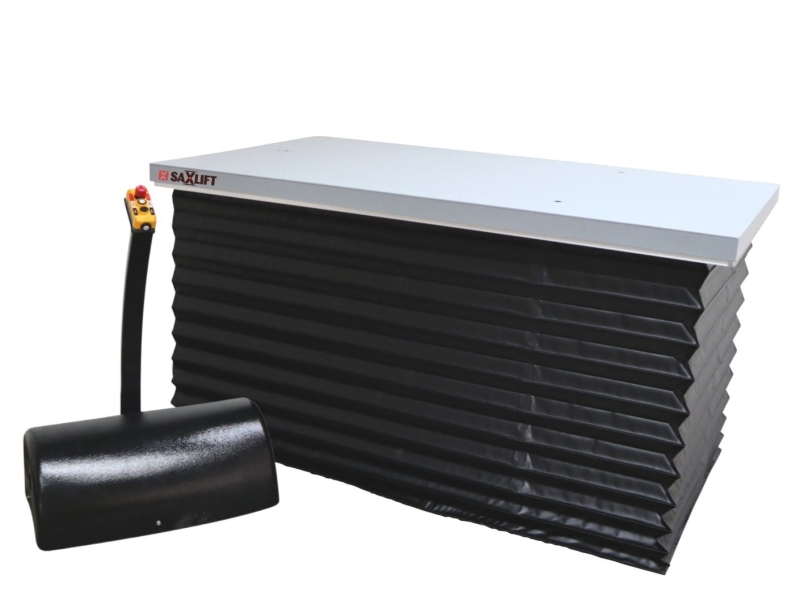

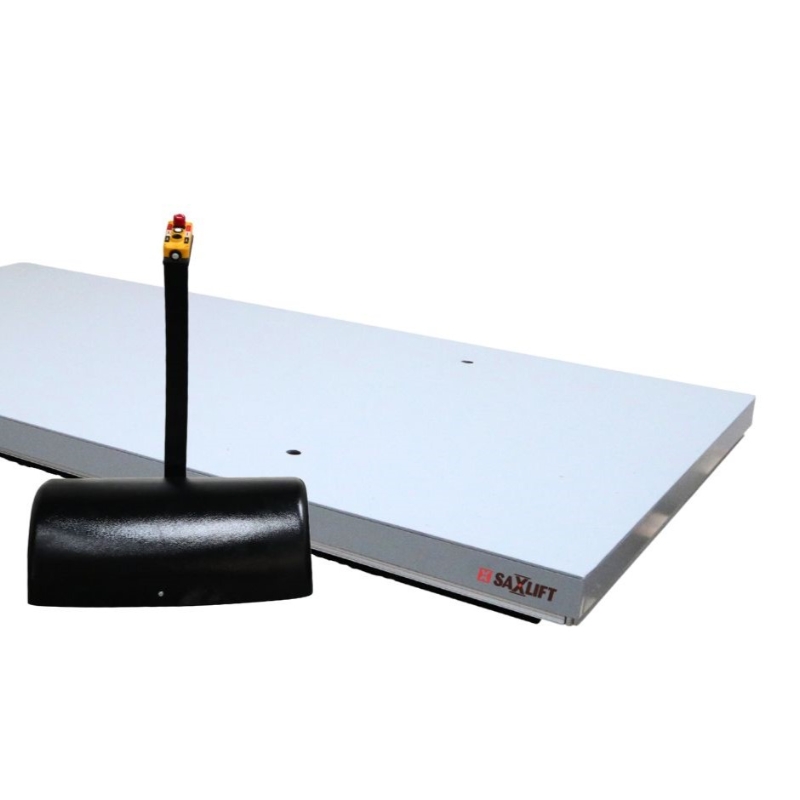

ICB800-B Low profile lift table with bellow

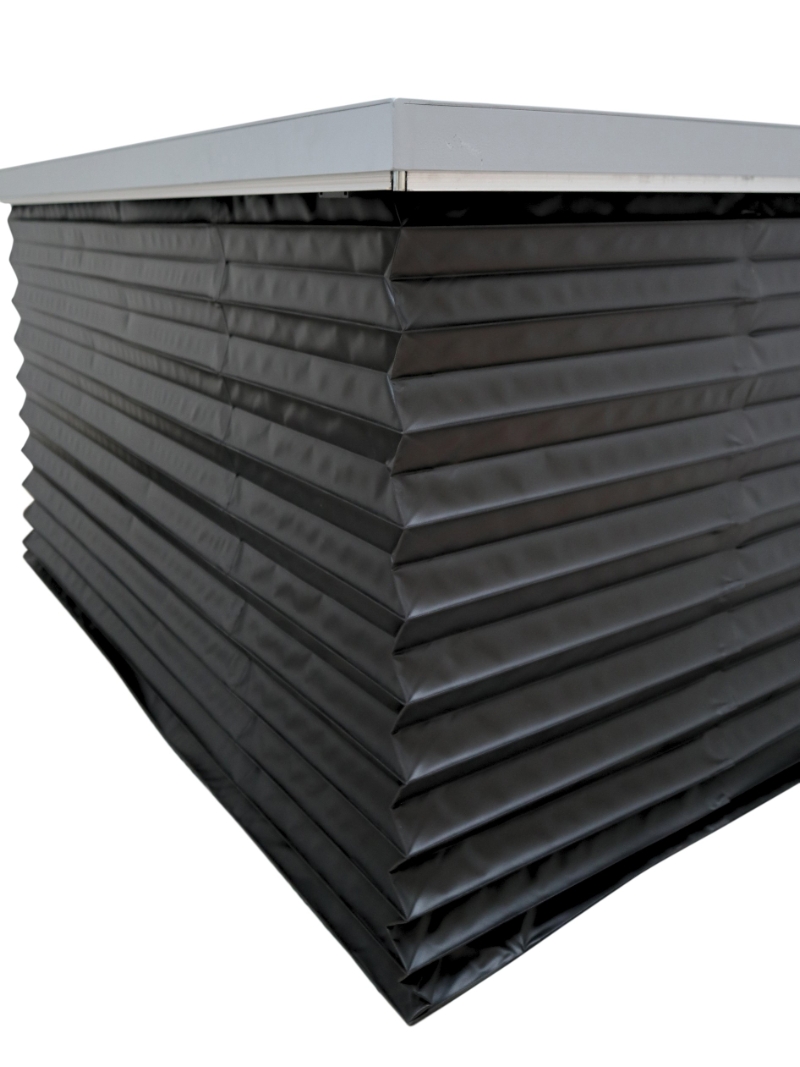

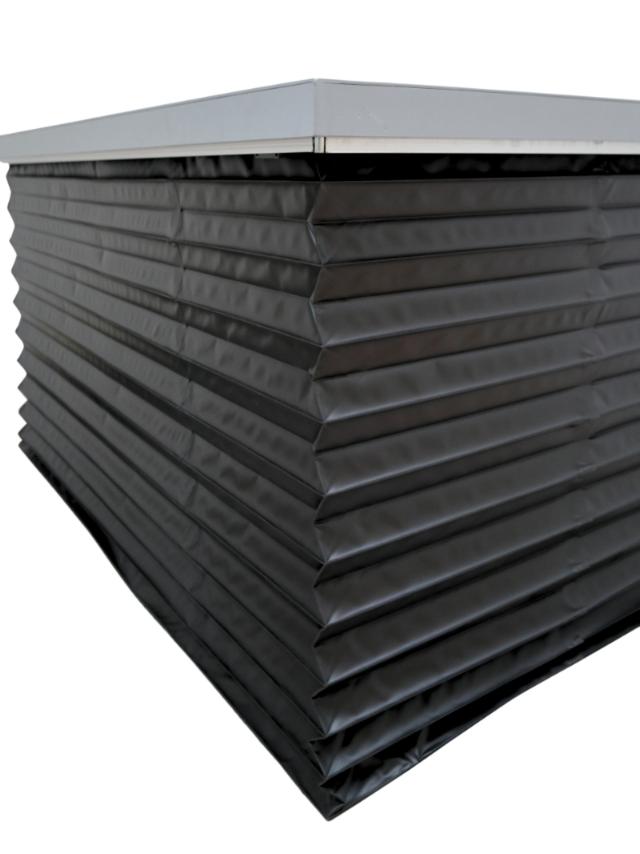

The ICB-800B Lift table offers safe and efficient lifting with a capacity of 800 kg, lifting height of 885 mm, and a platform of 1550 x 1000 mm. The protective bellow shields the hydraulic mechanism from dust and debris, enhancing safety and reducing maintenance.
Bellows can be added to all low profile lift tables.
Do you need customisation of this lift table?
Fast delivery. Pay with Creditcard or Invoice
| Travel | 795 mm |
| Closed height | 90 mm |
| Total height | 885 mm |
| Platform length | 1550 mm |
| Platform width | 1000 mm |
| Capacity | 800 kg |
| Lifting Time | 23 sec |
STANDARD SETUP
- Power supply 3-phase, 400V N + PE, 50Hz, 13 Amp is standard
- CEE Power plug
- IP54 rated
- Plug and Play
This product is in compliance with EN EN 1570-1:2024
STANDARD SAFETY FEATURES INCLUDED
- Hose burst valve to secure table from descending in case of breakage/leakage of hydraulic hoses
- Control box and electrical components designed for safety and durability
- Safety bar underneath platform will stop descent if obstructed
- Over-pressure valve to safeguard hydraulics and motor from overload
- Safe maintenance features
- Includes hand controller with up, down, and, emergency stop functions
HIGHEST QUALITY STANDARDS ON ALL COMPONENTS
- Unique control box with excellent performance, developed and produced locally next to our production facilities
- Top performing hydraulic components – each one carefully selected for durability and safe performance
- State of the art electrical components and wiring. Designed to last
- Quality controlled – every single table leaving Sax Lift has passed a thorough quality protocol and check procedure
Read more about our Lift Tables
Hose Burst Valve
High quality electrical circuit
Safety bar
Over-pressure valve
Safe maintenance features
LIFTING SOLUTIONS FOR DIFFERENT TASKS
Lift tables are the ideal solution for safe, efficient, and ergonomic handling of goods in production, warehouses, workshops, and logistics. They contribute to a safe and flexible workflow, whether for lifting, lowering, or as a workstation.
SAX LIFT TABLES – TOP SAFETY AND QUALITY
Our lift tables are CE-marked and manufactured according to the latest European standards DS/EN 1570-1:2024 with protection class IP54, ensuring high operational reliability and maximum user safety. The standard power supply is 3-phase 400V, but we also offer lift tables for 230V.
