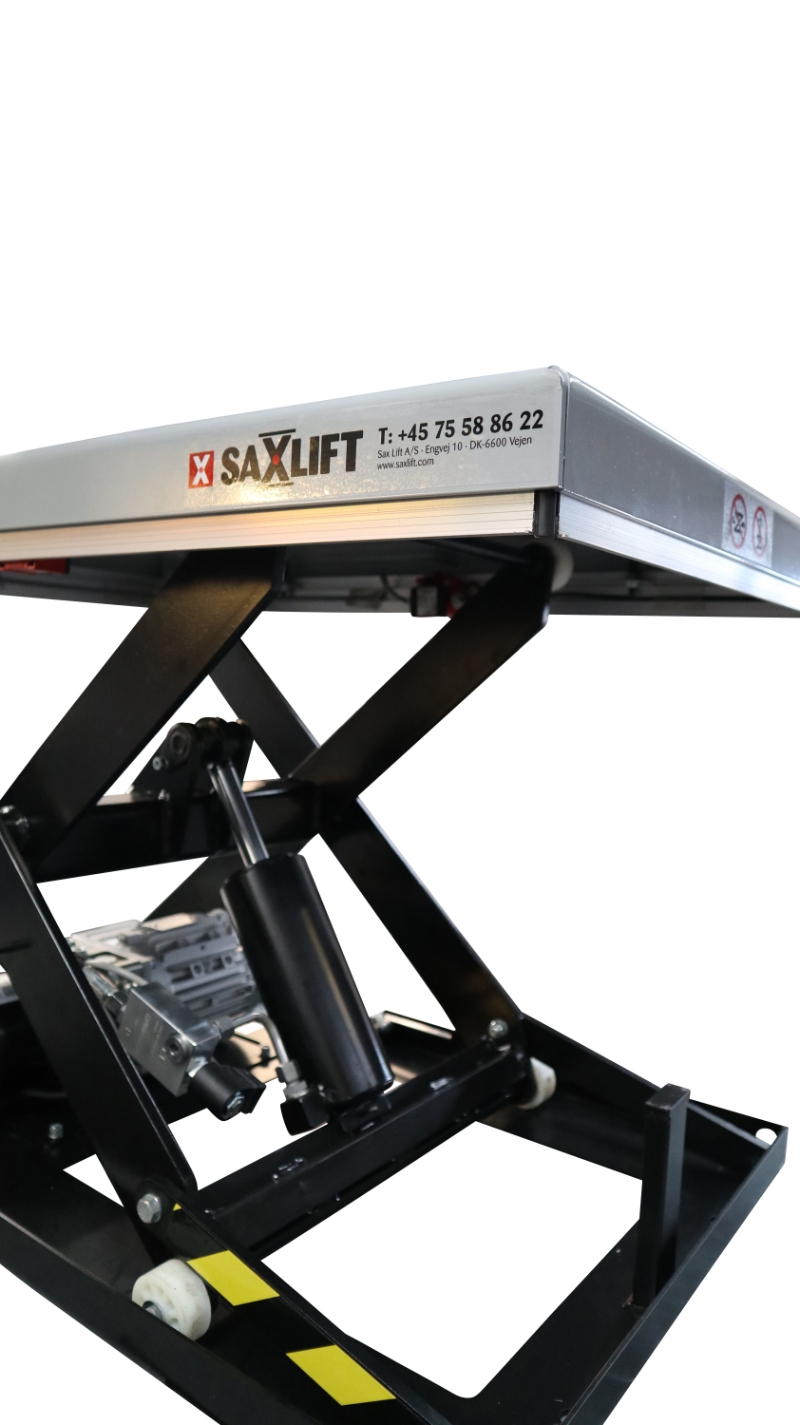

IL1000X single scissor lift table

£ 1,777.00 excl. VAT IN STOCK
£ 2,132.00 Incl. VAT

High quality lift table 1000 kg with platform size 1300 mm x 800 mm, lifting to 1040 mm
Available in stock for 230v – see IL1000X-230V here

IN STOCK

Travel 860 mm
Closed height 180 mm
Total height 1040 mm
Platform length 1300 mm
Platform width 800 mm
Capacity 1000 kg
Lifting Time 27 sec

STANDARD SAFETY FEATURES INCLUDED

  • Hose burst valve to secure table from descending in case of breakage/leakage of hydraulic hoses
  • Control box and electrical components designed for safety and durability
  • Safety bar underneath platform will stop descent if obstructed
  • Over-pressure valve to safeguard hydraulics and motor from overload
  • Safe maintenance features
  • Includes hand controller with up, down, and, emergency stop functions

HIGHEST QUALITY STANDARDS ON ALL COMPONENTS

  • Unique control box with excellent performance, developed and produced locally next to our production facilities
  • Top performing hydraulic components – each one carefully selected for durability and safe performance
  • State of the art electrical components and wiring. Designed to last
  • Quality controlled – every single table leaving Sax Lift has passed a thorough quality protocol and check procedure

STANDARD SETUP

  • Power supply 3-phase, 400V N + PE, 50Hz, 13 Amp is standard
  • CEE Power plug
  • IP54 rated
  • Plug and Play

This product is in compliance with EN 1570-1
