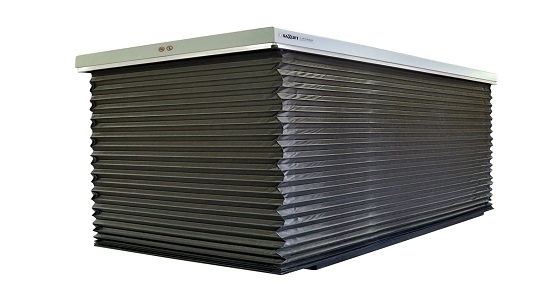

IL4000SB-B single scissor lift table w. bellow
High quality lift table 4000 kg with bellow and 2200 mm x 1200 mm platform, lifting to 1400 mm
Do you need customisation of this lift table?
| Travel | 1100 mm |
| Closed height | 300 mm |
| Total height | 1400 mm |
| Platform length | 2200 mm |
| Platform width | 1200 mm |
| Capacity | 4000 kg |
| Lifting Time | 35 sec |
STANDARD SAFETY FEATURES INCLUDED
- Fully ATEX-certified design for safe operation in explosive atmospheres (Zones 1 & 21, 2 & 22)
- Hydraulic power pack positioned outside the hazardous area for maximum safety
- Intrinsically safe limit switches ensure reliable operation inside ATEX zones
- Safety bar under platform stops movement immediately if obstructed
- Over-pressure valve protects motor and hydraulic components from overload
- Integrated grounding and anti-static protection to eliminate spark risk
HIGHEST QUALITY STANDARDS ON ALL COMPONENTS
- Full ATEX certification according to EU Directive 2014/34/EU
- Control box with premium performance and reliability
- Temperature class T6 (85°C) for gas and dust environments (IIC / IIIC)
- Precision assembly and inspection – each ATEX lift table passes a full quality and safety test
- Designed and produced to meet the strictest European standards for explosion protection
STANDARD SETUP
- Power supply: 3-phase, 400 V+N + PE, 50 Hz.
- Ingress protection: IP54 outside ATEX Zone and IP65 inside ATEX Zone
- Plug & Play installation with complete documentation
- Complies with ATEX Directive 2014/34/EU and DS/EN 1570-1:2024
Our control box and hydraulic pump is positioned outside the ATEX zone to improve safety within your ATEX ZONE
We utilize ATEX-certified handheld controls to optimize operator protection and safety within the ATEX zone.
We have implemented almost zero resistance between moving parts and PE to discharge static electricity and prevent spark occurrence in your ATEX ZONE
Intrinsic Safety (IS) is employed for limit switches to safely stop the table at maximum or minimum height in your ATEX ZONE.
ATEX Certification Excellence
Our ATEX-solutions are applicable in the following zones:
•II 2 D Ex IIIC T85°C Db
Designed for Zone 21 + Zone 22 (dust) environments, these tables inhibit combustible dust ignition, are suitable for groups IIIC, IIIB, and IIIA, and operate safely at a maximum surface temperature of T85°C.
•II 2 G Ex IIC T6 Gb
Designed for Zone 1 + Zone 2 (gas) certified tables prevent the ignition of explosive gases, covering groups IIC, IIB, and IIA. and operate safely at a maximum surface temperature of T85°C.
Standard ATEX-Rated Scissor Lift Table
Offering app. 100 different, and available, standard types of lift tables and mobile lift trolleys, each equipped with the Certificate Number ExVeritas 22 ATEX 1377 X, manufactured in accordance with various international standards and directives, our tables guarantee the highest levels of safety and reliability.
Custom solutions and add-ons such as turntables and bellows are available for Atex zones. Contact us to learn more about how we can tailor a solution to your needs.
