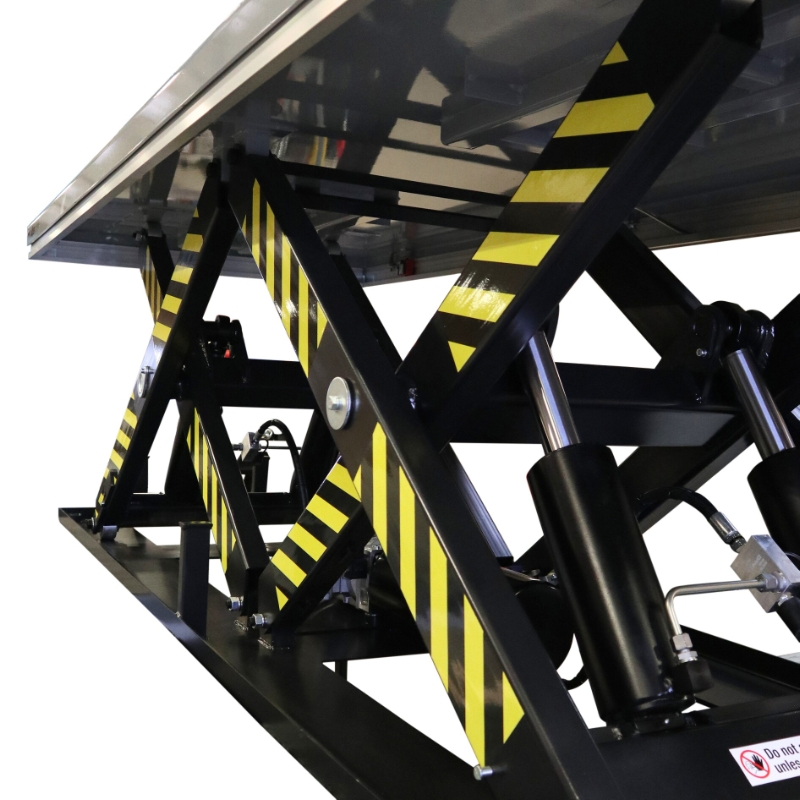

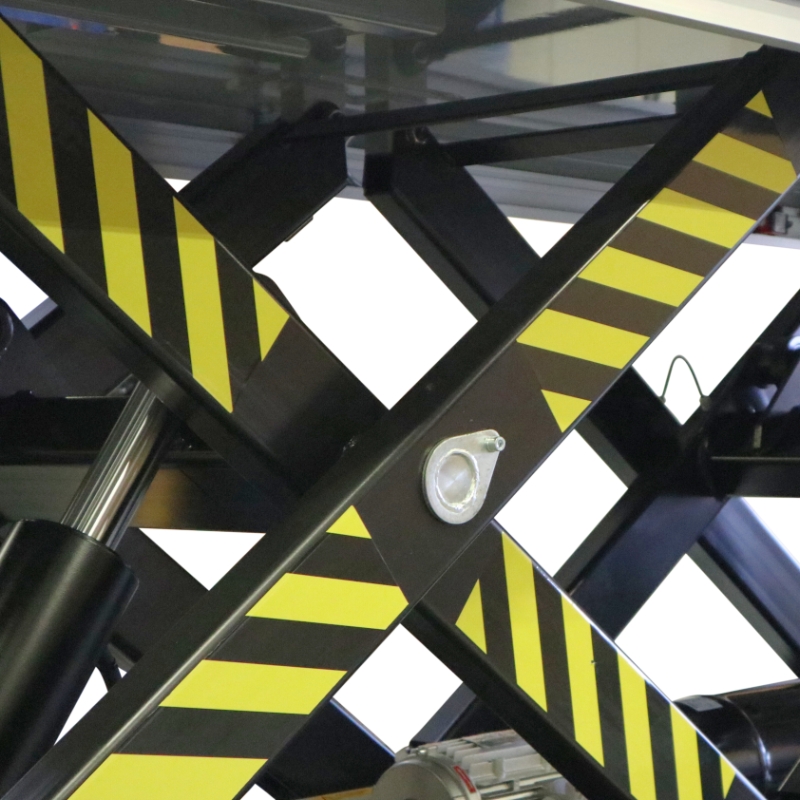

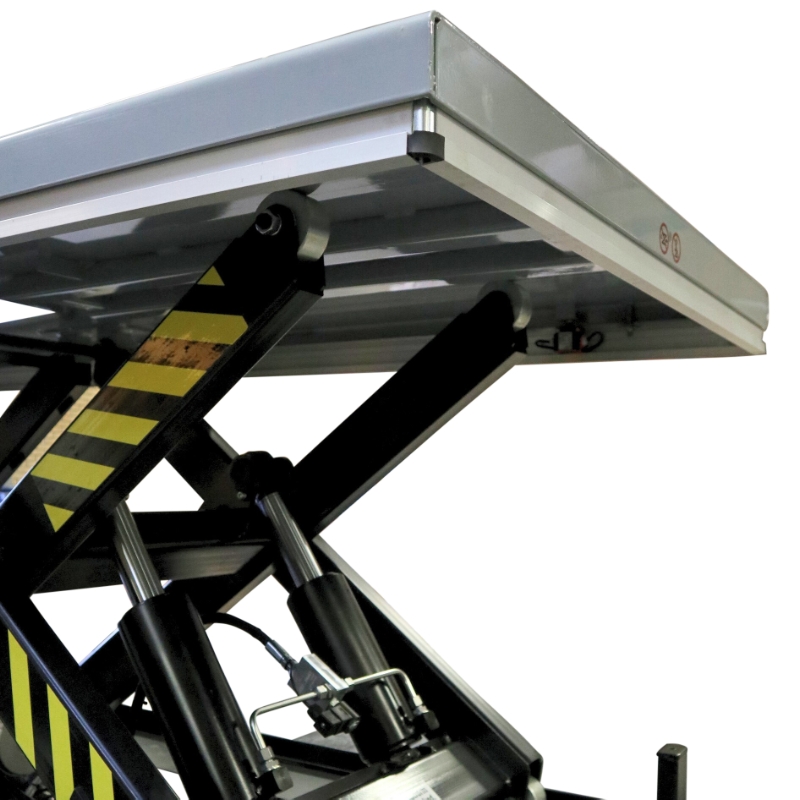

ILH8000 tandem scissor lift tables

£ 7,951.00 excl. VAT IN STOCK
£ 9,541.00 Incl. VAT

High quality lift table 8000 kg with platform size 3000 mm x 1200 mm, lifting to 1100 mm

IN PRODUCTION

Travel 860 mm
Closed height 240 mm
Total height 1100 mm
Platform length 3000 mm
Platform width 1200 mm
Capacity 8000 kg
Lifting Time 60 sec

STANDARD SAFETY FEATURES INCLUDED

  • Hose burst valve to secure table from descending in case of breakage/leakage of hydraulic hoses
  • Control box and electrical components designed for safety and durability
  • Safety bar underneath platform will stop descent if obstructed
  • Over-pressure valve to safeguard hydraulics and motor from overload
  • Safe maintenance features
  • Includes hand controller with up, down, and, emergency stop functions

HIGHEST QUALITY STANDARDS ON ALL COMPONENTS

  • Unique control box with excellent performance, developed and produced locally next to our production facilities
  • Top performing hydraulic components – each one carefully selected for durability and safe performance
  • State of the art electrical components and wiring. Designed to last
  • Quality controlled – every single table leaving Sax Lift has passed a thorough quality protocol and check procedure

STANDARD SETUP

  • Power supply 3-phase, 400V N + PE, 50Hz, 13 Amp is standard
  • CEE Power plug
  • IP54 rated
  • Plug and Play

This product is in compliance with EN 1570-1
