ILD3500 vertical lift table
£ 28,067.00 excl. VAT
IN STOCK
£ 33,680.00 Incl. VAT
High quality lift table 3500 kg with platform size 3000 mm x 2000 mm, lifting to 5100 mm
| Travel | 4210 mm |
| Closed height | 890 mm |
| Total height | 5100 mm |
| Platform length | 3000 mm |
| Platform width | 2000 mm |
| Capacity | 3500 kg |
| Lifting Time | 134 sec |
STANDARD SAFETY FEATURES INCLUDED

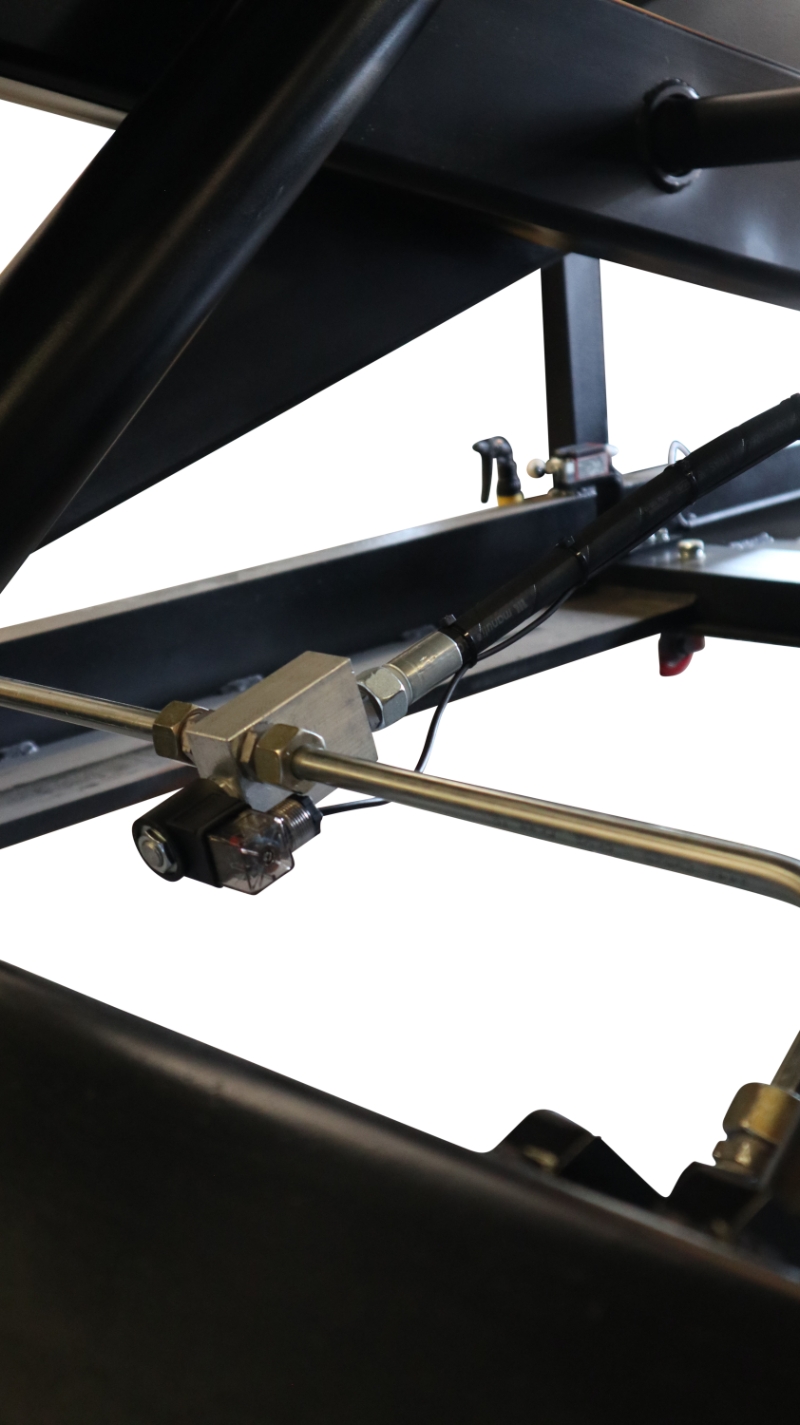

- Hose burst valve to secure table from descending in case of breakage/leakage of hydraulic hoses
- Control box and electrical components designed for safety and durability
- Safety bar underneath platform will stop descent if obstructed
- Over-pressure valve to safeguard hydraulics and motor from overload
- Safe maintenance features
- Includes hand controller with up, down, and, emergency stop functions
HIGHEST QUALITY STANDARDS ON ALL COMPONENTS
- Unique control box with excellent performance, developed and produced locally next to our production facilities
- Top performing hydraulic components – each one carefully selected for durability and safe performance
- State of the art electrical components and wiring. Designed to last
- Quality controlled – every single table leaving Sax Lift has passed a thorough quality protocol and check procedure
STANDARD SETUP
- Power supply 3-phase, 400V N + PE, 50Hz, 13 Amp is standard
- CEE Power plug
- IP54 rated
- Plug and Play
This product is in compliance with EN 1570-1 + A1, 2nd version 2014-10-09
